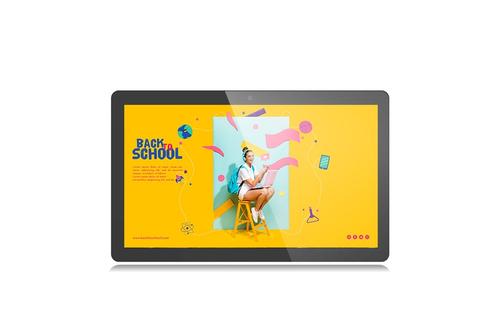

AOPEN C-Tile 15"

AOPEN C-Tile 15" (91.AT200.5050)

AOPEN C-Tile 15"

SKU:
91.AT200.5050
EAN:
4712947238465
  • Vormfactor All-in-One
  • CPU-familie OTHER
  • CPU-aantal 1
  • Discrete graphics Niet beschikbaar
  • HDD 0GB
  • SSD / Flash 16GB
  • Geheugen 4GB
  • Grootte 15.6"
  • Operationeel systeem -
  • Model Aopen eTILE
  • CTO / BTO Nee
Beschrijving

Aopen C-Tile 15


A 15" 2-in-1 solution, based on the Chromebox Mini, which functions as an all-in-one touch solution. The Chromebox Mini is integrated inside the device. This solution easily runs Full HD content and is capable of running different applications based on Chrome OS. The 15 inch touch screen ensures an interactive experience that works within different environments.

Full HD Resolution
A Full HD Resolution, with 16:9 aspect ratio, which includes 1920 x 1080 pixels. This all-in-one touch solution is used in both portrait and landscape, without losing on the viewing angle quality. Therefore, this all-in-one is the perfect match for integration into different kiosks

Handles shocks and vibrations with ease
This device handles shock and vibrations with ease because of its fanless design and solid-state disk (SSD). Because the device has no moving parts, shocks and vibrations are no issue. This means this device is perfect for, for example, moving vehicles: to show transportation information in busses or for signage on cruise ships.

Fanless design
The eTILE-X Range, the eTILE M-FB Series and all AOPEN Chrome devices are passively cooled. This means the solution is fanless. This results in a quieter device that is dustproof and solid state. Thereby, an AOPEN devices is perfect for integration in dusty, greasy and quiet environments.


Specifications:

Housing Material
  • Metal
Dimension WxHxD
  • 395.1 x 244.6 x 38 (mm)
  • 15.56 x 9.63 x 1.50 (inch)
Weight
  • 3.3kg / 7.28 lbs
CPU
  • Rockchip RK3288C
  • Quad Core Cortex-A17 1.8 GHz
Chipset
  • Build-in CPU
Memory
  • Dual Channel, LPDDR3
  • 1066,MHz,4GB (on board)
Graphics
  • ARM Mali-T764
Resolution
  • 15,6", 1920 x 1080
Maximum Brightness
  • 250 nits
Panel Type
  • VA
View Angle (CR>10)
  • 160/160
Response time
  • 25ms
Contrast Ratio
  • 700:1
Touch
  • Multi Touch PCT
Audio
  • Type Maxim MX98090
  • Channel Stereo
LAN
  • Gigabit
  • 10/100/1000
Storage
  • EMMC 16G SSD (on board)
Security
  • Kensington Lock Hole x1
System I/O
  • DC Jack x 1
  • USB 2.0 Port x 4
  • RJ45 LAN Jack x 1
  • COM PORT x 2 RJ50
  • WiFi Antenna port Embedded + Punch out for external antenna
Watchdog Timer
  • --
IP Grade
  • IP65
Adapter
  • 40W/19V
Input Voltage
  • AC 100 ~ 240V
MTBF
  • 50.000 hrs
Operating Temperature
  • 0 ~ 40ºC
Storage Temperature
  • -10 ~ 60ºC
Relative Humidity
  • 90% RH ( 40ºC non-condensing)
